Vieworks VIVIX-D 0606C
| Model Name | FXDD-0606CA |
|---|---|
| Technology | a-Si TFT with photodiode |
| Scintillator | CsI:Tl |
| Pixel Pitch | 119 ㎛ |
| Spatial Resolution | 4.2 lp/mm |
| Pixels | 1280 x 1280 pixels |
| Image Size | 6″ x 6″ (15.2 ㎝ x 15.2 ㎝) |
| Grayscale | 16 bit |
| Maximum Frame Rate | Full size: 36 fps 2×2 binning: 72 fps Panoramic scan: 350 fps |

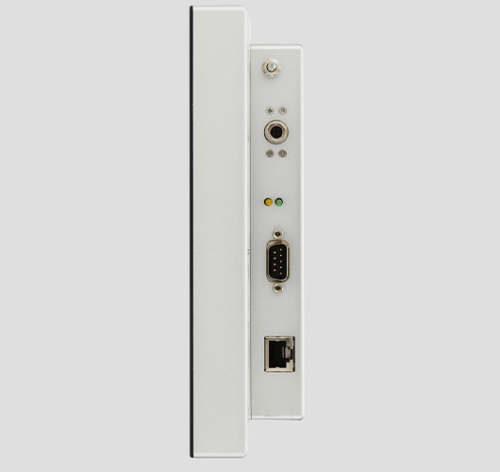

| Data Interface | Gigabit Ethernet |
| X-ray Generator Interface | Internal Trigger External Trigger |

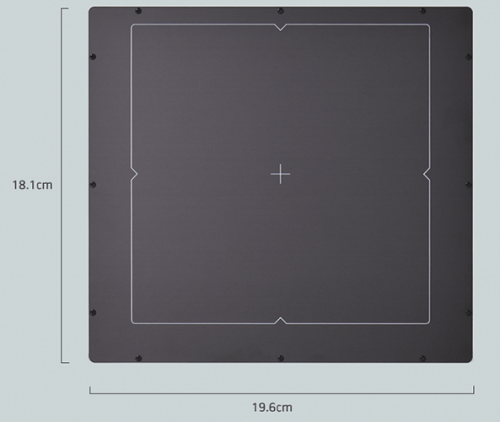

| Dimensions | 19.6 ㎝ x 18.1 ㎝ x 5.0 ㎝ |
| Weight | 1.9 kg |
| Boot-up Time | less than 10 s |
| Packet Loss Prevention | Available |
| Operating Environment | 10℃ to 35℃ 30 % to 85 % RH (non-condensing) |
| Power | DC 12 V, 1.5 A |
Features
Fast image acquisition speed
- The fast TFT detector with 36fps image acquisition speed
High image quality
- High image resolution of 4.2lp/mm
On-board image processing and correction
- Supporting on-board image correction in real time
Application
- Dental CBCT, Panoramic, Mini C-arm systems
