Vieworks VIVIX-D 1012CH
| Model Name | FXDD-1012CHA |
|---|---|
| Technology | a-Si TFT with photodiode |
| Scintillator | CsI:Tl |
| Pixel Pitch | 124 ㎛ |
| Spatial Resolution | 4.0 lp/mm |
| Pixels | 2048 x 2560 pixels |
| Image Size | 10″ x 12″ (31.7 ㎝ x 25.4 ㎝) |
| Grayscale | 16 bit |
| Maximum Frame Rate | Full size: 22 fps 2×2 binning: 44 fps Panoramic scan: 340 fps |

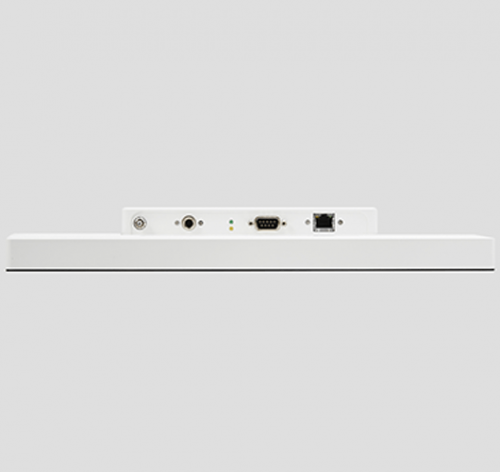

| Data Interface | Gigabit Ethernet |
| X-ray Generator Interface | Internal Trigger External Trigger |

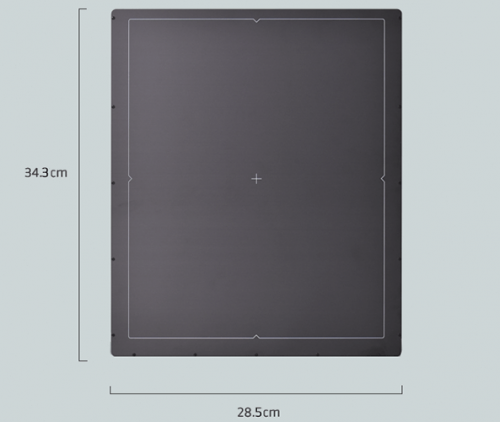

| Dimensions | 28.5 ㎝ x 34.3 ㎝ x 4.5 ㎝ |
| Weight | 4.0 kg |
| Boot-up Time | less than 10 s |
| Packet Loss Prevention | Available |
| Operating Environment | 10℃ to 35℃ 30 % to 85 % RH (non-condensing) |
| Power | DC 12 V, 2.5 A |
Features
High image quality
- High spatial resolution with 124㎛
- Real time on-board image correction
High frame rate
- 22 fps @ 1 x 1
- 44 fps @ 2 x 2
- 340 fps @ Panoramic scan
Fast transmission
- 2-port GigE
- Maximum 2 Gbps
Larger FOV
- Active area of 31.7 cm x 25.4 cm
- Capturing the entire cephalometric projections in one shot
Stable operation – Safe
- Preventing data loss with internal memory
- Preparing for unexpected situations such as PC or network error in advance
Application
- All-in-one CBCT system
