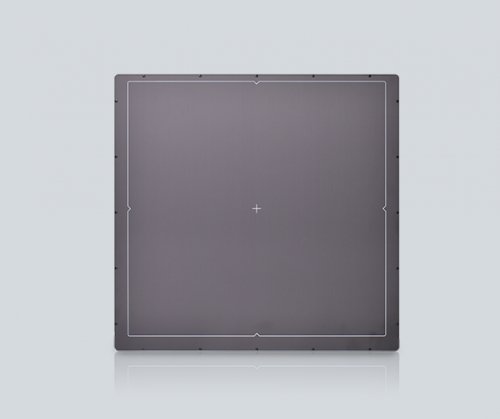

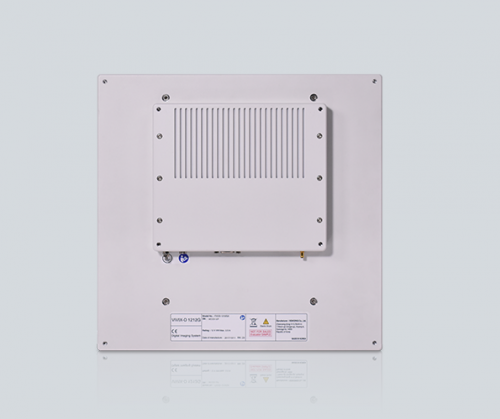

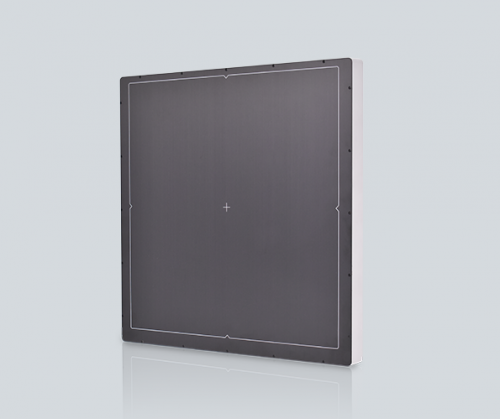

Vieworks VIVIX-D 1212G
| Model Name | FXDD-1212GA |
|---|---|
| Technology | a-Si TFT with photodiode |
| Scintillator | CsI:Tl |
| Pixel Pitch | 145 ㎛ |
| Spatial Resolution | 3.4 lp/mm |
| Pixels | 2048 x 2048 pixels |
| Image Size (H x V) | 12″ x 12″ (29.7 ㎝ x 29.7 ㎝) |
| Grayscale | 16 bit |
| Maximum Frame Rate | Full size: 14 fps 2×2 binning: 30 fps / 46 fps |
| Data Interface | Gigabit Ethernet / CoaXPress |
| X-ray Generator Interface | Internal Trigger External Trigger |

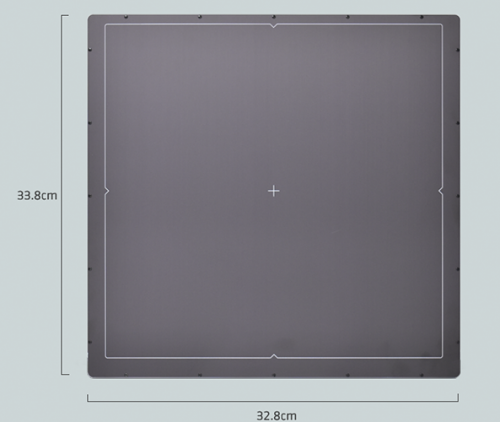

| Dimensions (H x W x D) | 32.8 ㎝ x 32.3 ㎝ x 5.0 ㎝ |
| Weight | 4.1 kg |
| Boot-up Time | less than 30 s |
| Packet Loss Prevention | – |
| Operating Environment | 10℃ to 35℃ 30 % to 85 % RH (non-condensing) |
| Power | DC 12 V, 2.5 A |
Features
High image quality
- High spatial resolution with 145㎛
- The fast TFT detector with 14 fps image acquisition speed (46fps @ 2×2 binning mode)
Designed for RF systems
- Active area of 12” x 12”
- Perfect solution for RF systems
Application
- Radiography and Fluoroscopy systems
